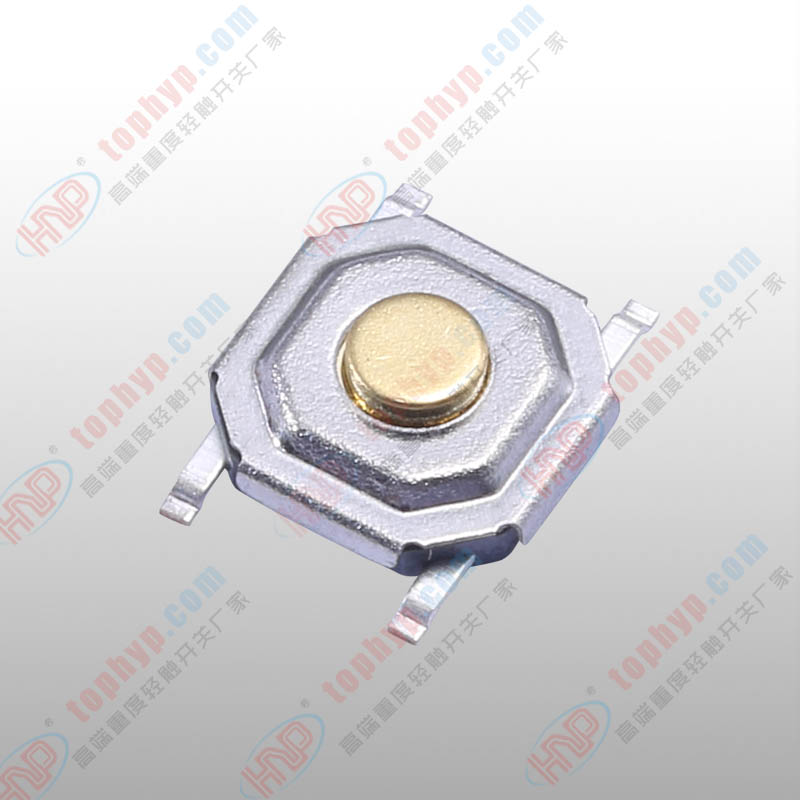

- product name: Top push SMD5.2*5.2mm
- Product Number: 1TS001G
- Material: PPA/BRONZE/STAINLESS STEEL
- Scope of application: Smart Speakers, Headphones, Toys
Hello! Welcome to Shenzhen Honyuan precision equipment Co., Ltd. official website!

Reference alternative:




| Item | Tact switch detail | Tact switch detail 2 |
| Article number | 1TS001G | 1TS001G |
| Model | 1TS001G | 1TS001G |
| Series | 1TS00 | 1TS001 |
| (LxW) (mm) | 5.2*5.2mm | 5.2*5.2mm |
| (H) (mm) | 1.5/1.6/1.7±0.1mm | 1.5/1.6/1.7±0.1mm |
| Installation height (mm) | 1.5/1.6/1.7±0.1mm | 1.5/1.6/1.7±0.1mm |
| Operation | Top-press type | Top-press type |
| Welding type | SMD | SMD |
| Live-fire type | Surface mount | Surface mount |
| Maximum rating | DC 12V/50mA | DC 12V/50mA |
| Contact resistance (<mΩ) | 500mΩ max. | 500mΩ max. |
| Insulation resistance (MΩ at 100V DC) | DC100V 60S 100MΩ min. | DC100V 60S 100MΩ min. |
| Withstanding voltage | AC250V(50~60HZ) 60S min. | AC250V(50~60HZ) 60S min. |
| Response time | <10ms (ON, OFF) | <10ms (ON, OFF) |
| Operating force | 160gf | 250gf |
| Stroke | Short stroke | Short stroke |
| Stroke (mm) | 0.25±0.1mm | 0.25±0.1mm |
| Operating life | 100000 or more | 100000 or more |
| Operating temperature | –40℃~+90℃ | –40℃~+90℃ |
| Storage temperature | –40℃~+90℃ | –40℃~+90℃ |
| Package style | Reel packaging | Reel packaging |
| Mini pakage | 4000PCS/reel | 4000PCS/reel |
| CTNS/QTY | 12reel/ctn | 12reel/ctn |

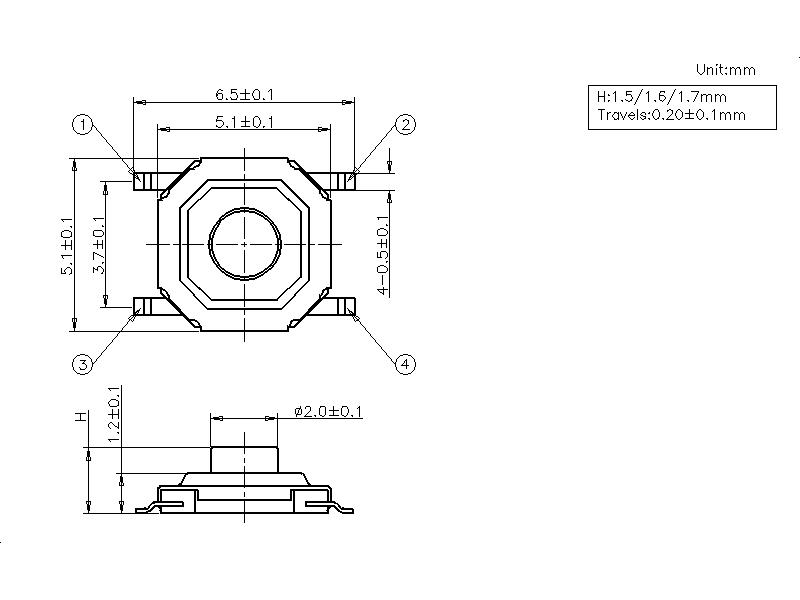

Dimensions:

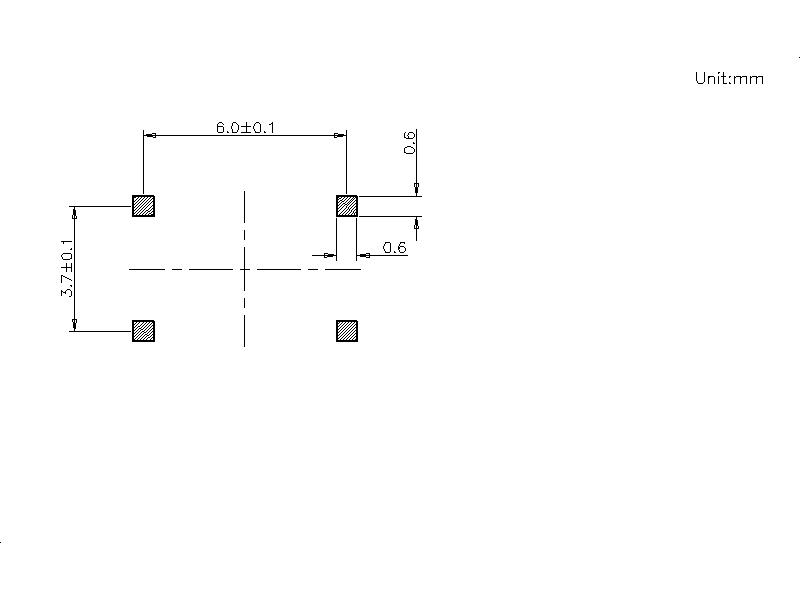

Welding diagram:

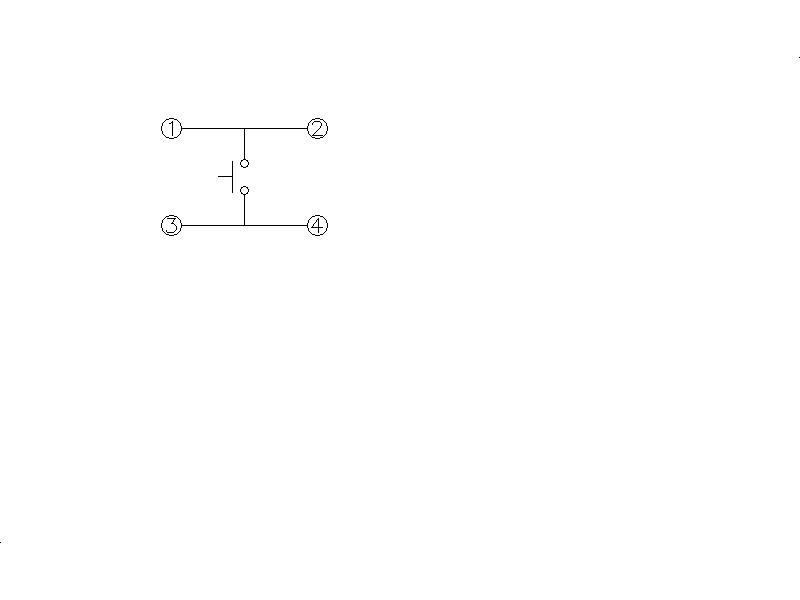

Circuit diagram:
